Edit Layer 3D Susceptibility

Replaces a 3D susceptibility distribution layer by importing a voxel. Before incorporating the new susceptibility distribution into the model, the input voxel is validated:

• It must have a valid coordinate system.
• If the resulting data contain dummies within the model area, they will be automatically filled.

To Select a Susceptibility Voxel

1. Select the layer on the Layers tab in the Model Explorer.

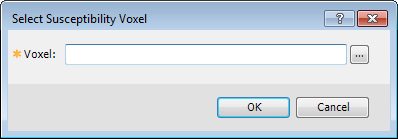

2. On the Properties pane, under Susceptibility, select Voxel Distribution from the Type dropdown list, if it is not already selected. The Select Susceptibility Voxel dialog appears.

1. Browse to select the Voxel to import.
2. Click OK. If the voxel is imported successfully, the layer properties panel and the statistics of the 3D susceptibility distribution will be displayed. If the import fails, in-line error messages appear.
3. Cancel leaves the 3D susceptibility distribution as it was. If no 3D susceptibility distribution was loaded prior to this operation, the susceptibility source will revert to its previous setting.
