Exporting Drillhole Data
Changes made to the drillhole data in Leapfrog Geo only affect the Leapfrog Geo database, not the original data files. You can export Leapfrog Geo drillhole data, which is useful if you wish to keep a copy of drillhole data outside the project.
You can:
- Export all data. See Exporting All Drillhole Data.
- Export only a single data table. See Exporting a Single Drillhole Data Table.
These export options export the drillhole data tables using To and From values to indicate location information. If you wish to export data with X-Y-Z values, extract points data using one of the following options:
- Extracting Contact Points from Drillhole Data
- Extracting Intrusion Values from Drillhole Data
- Extracting Interval Midpoints from Drillhole Data
Then export the data object as described in Exporting Points Data.
Exporting All Drillhole Data

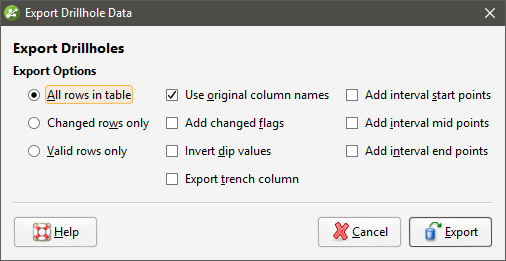

To export all drillhole data, right-click on the Drillholes object and select Export. The Export Drillhole Data window will appear:

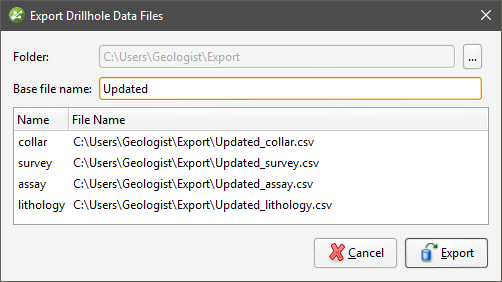

Once you have selected how you wish to export the data, click OK. The Export Drillhole Data Files window will appear:
The list shows the files that will be created, one for each data table. Choose the Folder where the files will be saved, then enter a Base file name, which will be added to the front of each file name.
Click Export to save the files.
Exporting a Single Drillhole Data Table

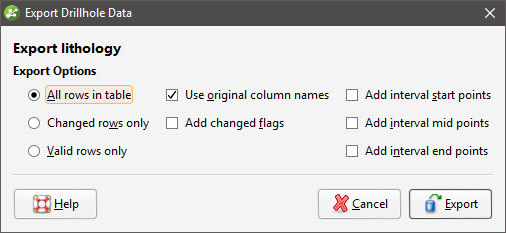

To export a single drillhole data table, right-click on that table and select Export. The Export Drillhole Data window will appear:
Once you have selected how you wish to export the data, click OK. You will be prompted for a filename and location.
