Designs

This topic describes how to work with designs in Leapfrog Works. It is divided into:

Importing Designs

Leapfrog Works imports designs in the following formats:

  • DGN (*.dgn)
  • DWG (*.dwg)
  • DXF (*.dxf)

This includes Autodesk Civil 3D objects in *.dwg format.

For DGN files:

  • Xrefs are not supported and the externally referenced data will need to be imported into Leapfrog Works separately.
  • For files that contain ‘Complex Elements’, it may be necessary to first ‘Drop Elements’ in the Bentley design software before importing it into Leapfrog Works.

When you are importing Civil3D objects, note that some object types can be imported into Leapfrog Works directly, while others must be exploded before they can be imported.

Object Imported As Notes
Alignments Design line
Corridors Design mesh
Feature lines Design line
Fittings Design mesh Needs to be exploded in Civil3D
Intersections Design line
Parcels Design line
Match lines Design line
Pipes Design mesh Needs to be exploded in Civil3D
Pressure pipes Design mesh Needs to be exploded in Civil3D
Sample lines Design line
Structures Design mesh Needs to be exploded in Civil3D
Surfaces Design mesh Needs to be exploded in Civil3D

To import a design, right-click on the Designs folder and select Import Designs. In the window that appears, navigate to the folder where your design is stored and select the files you wish to import. You can use the Shift and Ctrl keys to select multiple files. Click Open.

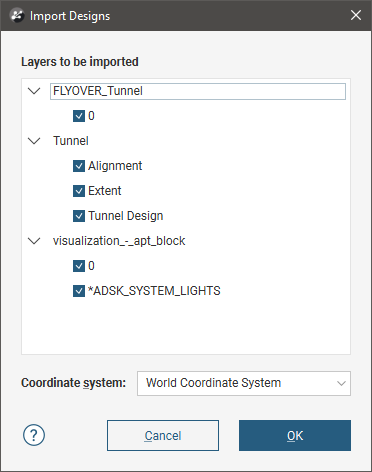

All models and layers available in the selected files will be displayed. Here three files have been selected for import, FLYOVER_Tunnel, Tunnel and visualization_-_apt_block:

Select the layers you want to import. If the files contain information on more than one coordinate system, select the system you want to use from the Coordinate system list. Click OK to import the selected objects.

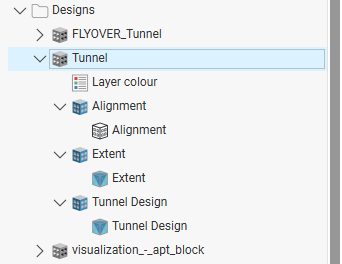

The model will be added to the project tree; expand it to see the different layers. For example, here a Tunnel file has been expanded in the project tree, showing the different layers:

The layer colours are saved in the Layer colour object (), which you can double-click on to change the colours used.

The meshes and lines in the model can be used as inputs to geological models and cross sections.

Reloading Designs

To reload a design, right-click on it in the project tree and select Reload. Navigate to the folder containing the design file and select the file. Click Open.

The process is the same as importing the model file. Click OK to reload the data. The original data will be overwritten and dependent objects will be updated to reflect the new data.

Displaying Designs

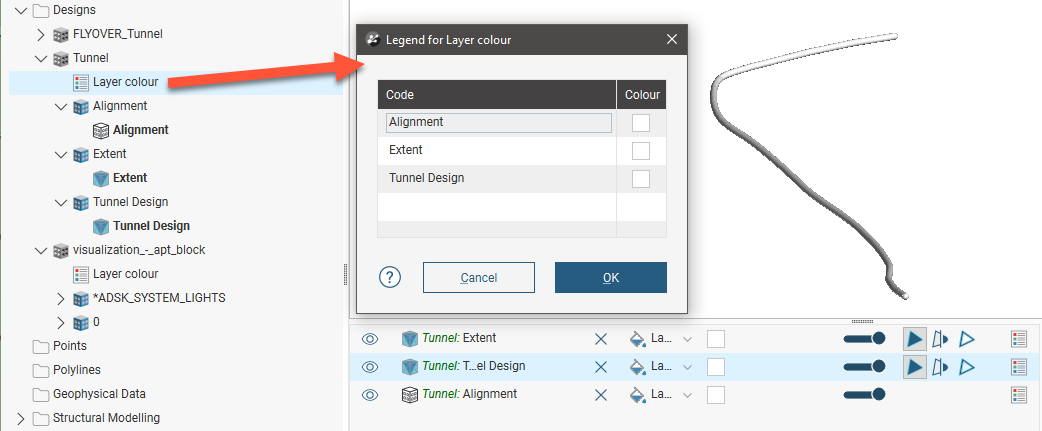

Drag the different layers of the design into the scene to display them. Meshes can be displayed using a Flat colour, the Face dip or the Layer colour. Design lines can be displayed using the Layer colour. Double-click on the Layer colour object () in the project tree to change the colours used:

Moving Designs

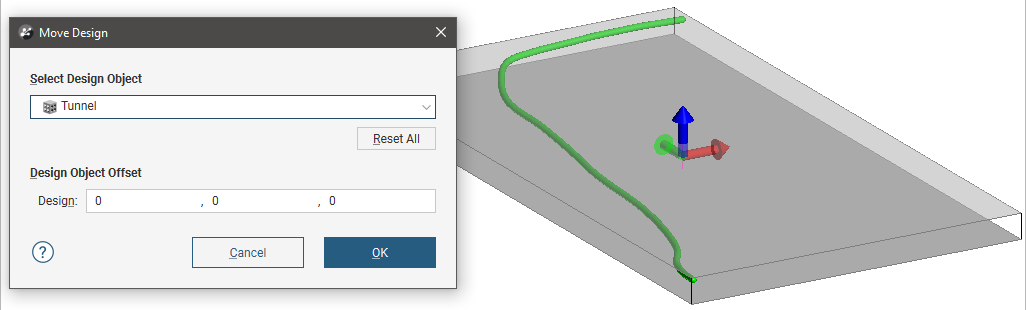

If all or part of the design are in the wrong location, you can move the entire design or part of it. Right-click on the object you want to move and select the Move option. The Move Design window will appear, together with tools in the scene for making changes. Select the part of the model you wish to move from the Select Design Object list. Here the whole model has been selected and there is one set of Offset values displayed in the Move Design:

Click on one of the arrows in the scene to move the design; you can only move in one plane at a time. Updated values will be displayed in the Move Design window.

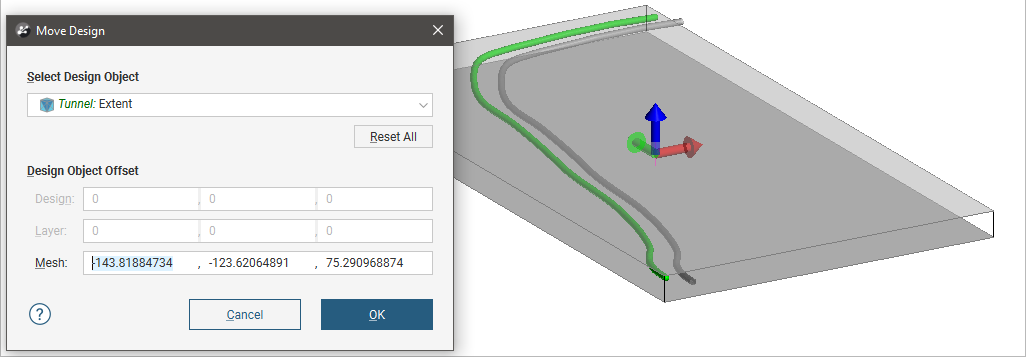

To move just part of the model, select it from the dropdown list. The controls in the scene will adjust only the location of the selected layer and its contents:

Click the Reset All button to return all location values to 0,0,0.

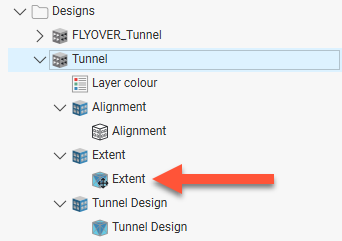

Click OK to close the Move Design window and save the new values. All parts of the model that have been moved will be marked in the project tree with moved sign (). For example, here only the extent has been moved:

You can edit the offset values by opening the Move Design window once again.

Working with Design Meshes

You can carry out standard operations on the design meshes, including the options available for working with meshes in the Meshes folder. See the Meshes topic for more information.

Right-click on a mesh to see the other options available.

A mesh marked with an exclamation mark () is not closed.

Editing Design Lines

If you need to edit a design line, right-click on it and select Extract Polyline. The new polyline object will appear in the Polylines folder. You can then edit the polyline and use it as an input to models and cross sections.

Exporting Designs

Leapfrog Works can export designs and design lines in AutoCAD Drawing file (2013/LT2013) (*.dwg) and Bentley Drawing Files (v8) (*.dgn) formats.

Leapfrog Works can export design meshes in the following formats:

  • Leapfrog Attribute Binary Mesh Format (*.msh)
  • GOCAD Files (*.ts)
  • DXF Files (11/12 [AC1009]) (*.dxf)
  • Gemcom Files (*.tri)
  • Datamine Files (*.asc, *.asc)
  • Micromine Files (*MMpt.dat, *MMtr.dat)
  • Surpac Files (*.dtm, *.str)
  • DXF Polyface Files (11/12 [AC1009]) (*.dxf)
  • Alias Wavefront Object Files (*.obj)
  • AutoCAD Drawing Files (2013/LT2013) (*.dwg)
  • Bentley Drawing Files (v8) (*.dgn)
