Importing Data from Seequent Evo

See the Leapfrog Works/Seequent Evo Data Flow topic for an overview of importing, publishing and reloading Evo data.

This topic discusses the process of importing data from Seequent Evo. It is divided into:

Starting the Import Process

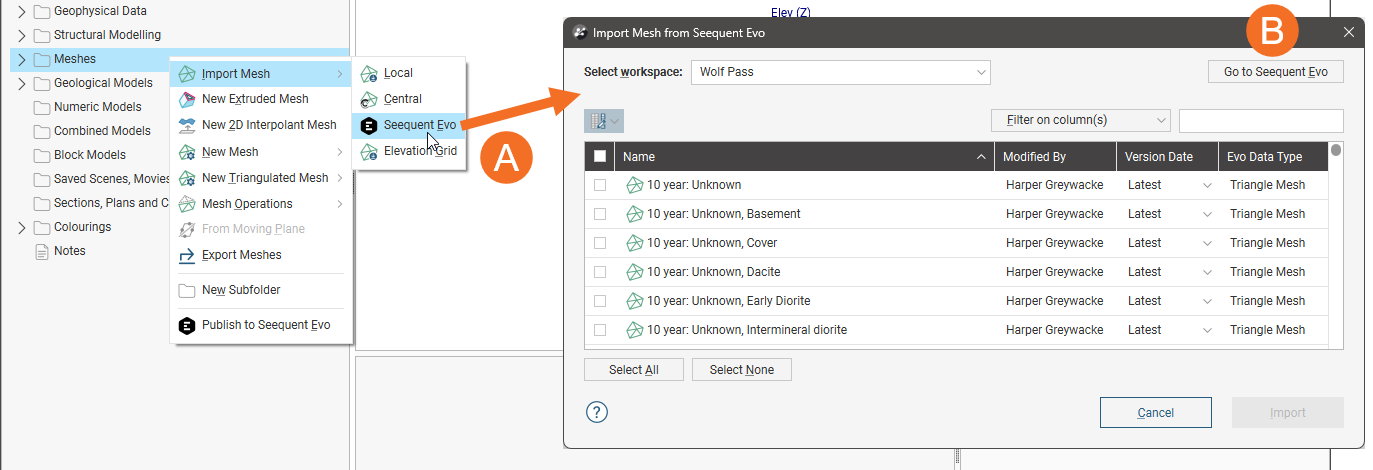

To start importing data from Seequent Evo, right-click on a folder in the project tree and choose the Seequent Evo option (A) from the Import menu:

Importing data into a Leapfrog Works project is similar to importing data from local files, except you must first specify the workspace that contains the data you wish to import.

  • If you are unsure as to what workspace contains the data you wish to import, click the Go to Seequent Evo button (B) to open Seequent Evo in your web browser.
  • If a workspace you expect to see is not listed, click on the Evo menu next to the user ID menu and click the Refresh button ().

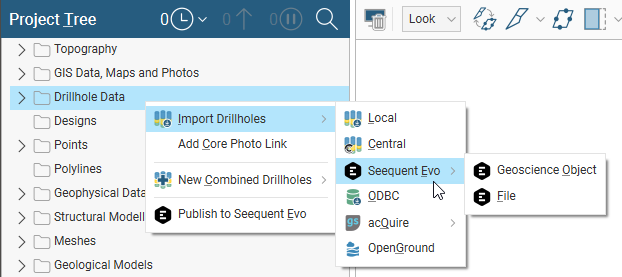

For drilling data, you can choose whether to import data from Evo’s Geoscience Object service or from the File service:

Importing drilling data from the File service is discussed in further detail in Importing Drilling Data from the File Service later in this topic.

The Import from Seequent Evo Window

Once you have chosen the workspace you want to import data from, all data in the workspace that matches the data type you are importing will be displayed. Tick the box for any object you wish to import. There are Select All and Select None buttons to assist with this selection process.

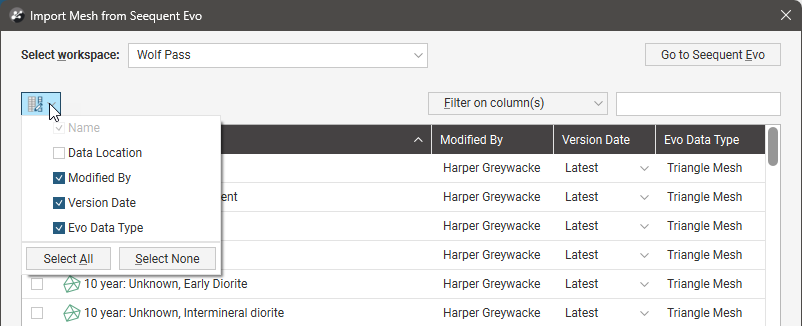

With the column button (), you can choose which columns appear in the table, which can assist in selecting which data to import when the workspace contains a lot of data.

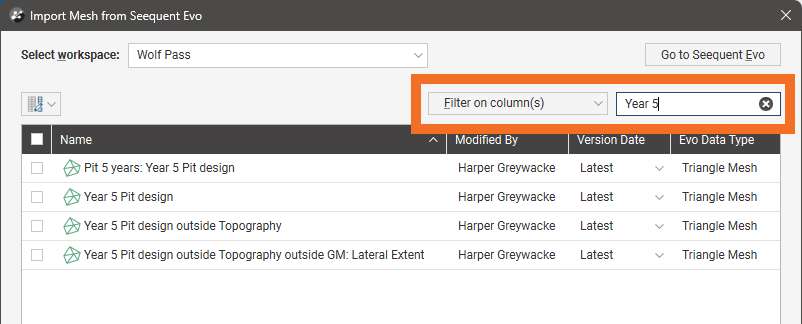

You can also filter the list to limit how many objects are displayed. You can choose which columns are used to filter the list by clicking on Filter on columns. When no columns are selected, the filter is applied to only object names.

Note that filtering out objects in this way does not deselect them, if they were selected before the filter was applied.

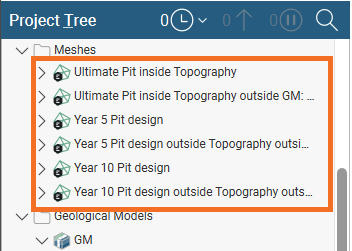

Once you have selected the objects you wish to import, click the Import button. In most cases, the objects will be added to the Leapfrog Works project tree. For drilling data, however, there will be extra steps. See Importing Drilling Data from the File Service later in this topic.

Objects in a project that have been imported from Evo are indicated in the project tree using an Evo badge, which is the case for the Topography and DEM Balcooma objects here:

Some objects imported from Evo will include an associated colourmap. If this is the case, the colourmap will be automatically applied to the imported object. The colourmap will appear in the Colourings > Shared Colourmaps > Imported folder in the project tree, where it can be applied to other objects in the project.

Importing Drilling Data from the File Service

In addition to importing drilling data from Evo’s Geoscience Object service, you can also import drilling data from Evo’s File service. To do this, right-click on the Borehole Data folder in the project tree and select Import Boreholes > Seequent Evo > File.

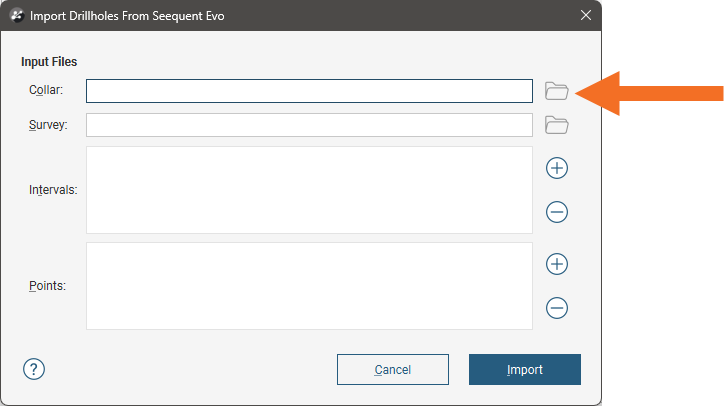

In the window that appears, click the Collar button:

Choose the file you wish to use from the list of those available and click Import to return to the Import Boreholes From Seequent Evo window. Repeat the process for files you wish to import until all are listed in the Import Boreholes From Seequent Evo window. Click Import to start working through the files as described in Importing Data Tables.

A drilling dataset will be added to the project tree in the Borehole Data folder.

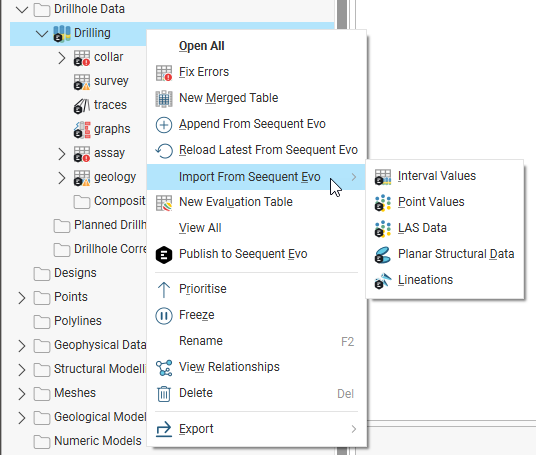

You can import additional drilling data tables to an existing drilling dataset from Seequent Evo, but you can only do so from the Geoscience Objects service. To import additional tables, right-click on a drilling dataset and select Import From Seequent Evo, then select the data type you wish to import.
