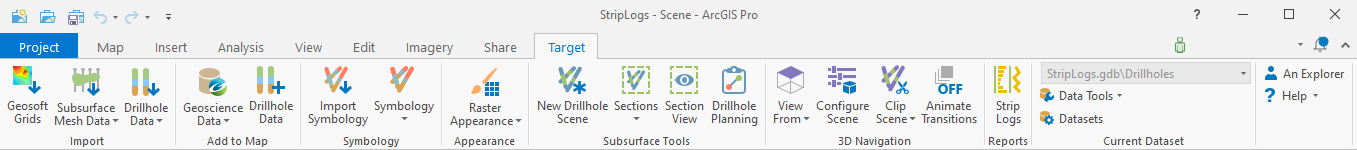

Installing Target for ArcGIS Pro will add a new ribbon to your ArcGIS Pro application, called "Target".
The following tools and options are available on the Target ribbon:
Geosoft Grids – Import and convert Geosoft grids files into Esri raster datasets
Subsurface Mesh Data - Import subsurface mesh datasets that could contain geological models or other subsurface data
Import Drillhole Data - Import drillhole datasets from a variety of local files or online hosted sources
Geoscience Data – Search for and download geoscience data from a Geoscience Data Portal
Drillhole Data - Add drillhole feature classes and attributes to the active map or scene
Import Symbology - Import previously defined symbology from a layer, csv files, or another geodatabase
Symbology - Create customized drillhole symbologies, set defaults and manage project symbologies
Raster Appearance – Quick appearance options for raster datasets
Quick Hillshade – Apply a multi-directional hillshade raster function to the currently selected raster layer
Equalized Histogram – Apply a histogram equalized color classification commonly used with geophysical rasters
Log-Linear Classified – Apply a log-linear color classification commonly used with geochemical rasters
Import Geosoft Colors – Import the standard Geosoft color tables into your current project styles
New Drillhole Scene - Create a new local scene and add the drillhole collars and traces from the current drillhole dataset
Sections - Create cross sections, modify existing sections and manage the sections in the current drillhole project
Section View - Enable a section view that will allow to slice and intersect data with existing sections in the current project
Drillhole Planning - Create new proposed drillholes on maps or scenes by defining collar and target locations or by specifying collar and trace parameters
View From - Change the viewing angle of your current scene
Configure Scene – Configure the current scene settings to be ideal for subsurface viewing
Clip Scene - Automatically set the scene extents
Animate Transitions - Animate changes to the scene viewing angle
Strip Logs - Create graphical drill logs as detailed single drillhole summary reports.
Current Dataset Selector - Select the "current" drillhole dataset here, when there are more than one datasets in the project
Refresh Drillhole Imports - Re-import the drillhole data using the original source file location and import settings
Resurvey Drillholes - Recalculate the drillhole traces from survey and collar measurements
Convert Oriented Core Angles - Convert alpha and beta core measurements to absolute dip and dip-direction measurements
Get Elevations - Extract values from a raster elevation source to the collar feature class of a drillhole dataset
|
A link to your Seequent ID profile (shown by your user name) A Help menu which contains the following:
An Upgrade button if no licensed functionality is available; see Licensing Target for ArcGIS Pro for more details. |
With the free version, the licensed tools will be disabled (grayed out) and the Upgrade button will be available.
Some buttons and tools are also grayed out until drillhole data has been imported. If you do not see the Upgrade button, but some buttons are still disabled, start by importing drillhole data.
